How RALCO Identified and Replaced a Failing 5,000A Main Breaker Within 48 Hours
When industrial electrical systems fail, the consequences extend far beyond the equipment itself. Failures can trigger unplanned downtime, safety risks, lost production, and cascading operational impacts, often totaling hundreds of thousands to millions of dollars per day.
During a recent planned electrical outage, RALCO Electric & Generator’s Electrical Maintenance & Testing Division identified a critical failure in a 5,000-amp main breaker at a large industrial manufacturing facility before it could shut down operations.
What followed was a highly coordinated, time-critical response that demonstrated the value of proactive electrical maintenance and the importance of working with an electrical contractor that has the expertise, supplier relationships, and resources to solve complex industrial problems quickly.
At A Glance
The Facility
The customer is a large-scale industrial manufacturing facility operating continuous production with very little tolerance for electrical disruption. The site’s 480V distribution system feeds primary production lines, making reliability of the main protective equipment essential to operations.
The customer scheduled a planned outage with RALCO to perform de-energized inspection and testing of critical distribution equipment. The objective was to identify latent failure conditions and address risk under controlled conditions rather than during an emergency.
The Finding: A Mission-Critical Breaker Was Failing
During de-energized testing, RALCO technicians identified a 5,000A main breaker with active failure indicators. The breaker:
Further inspection traced the failure to mechanical binding in the operating linkage and degraded lubrication associated with the lack of regular service and exercise.
Most importantly, the breaker was mission-critical and had no redundancy. Failure at this point would have resulted in a total loss of manufacturing capacity.

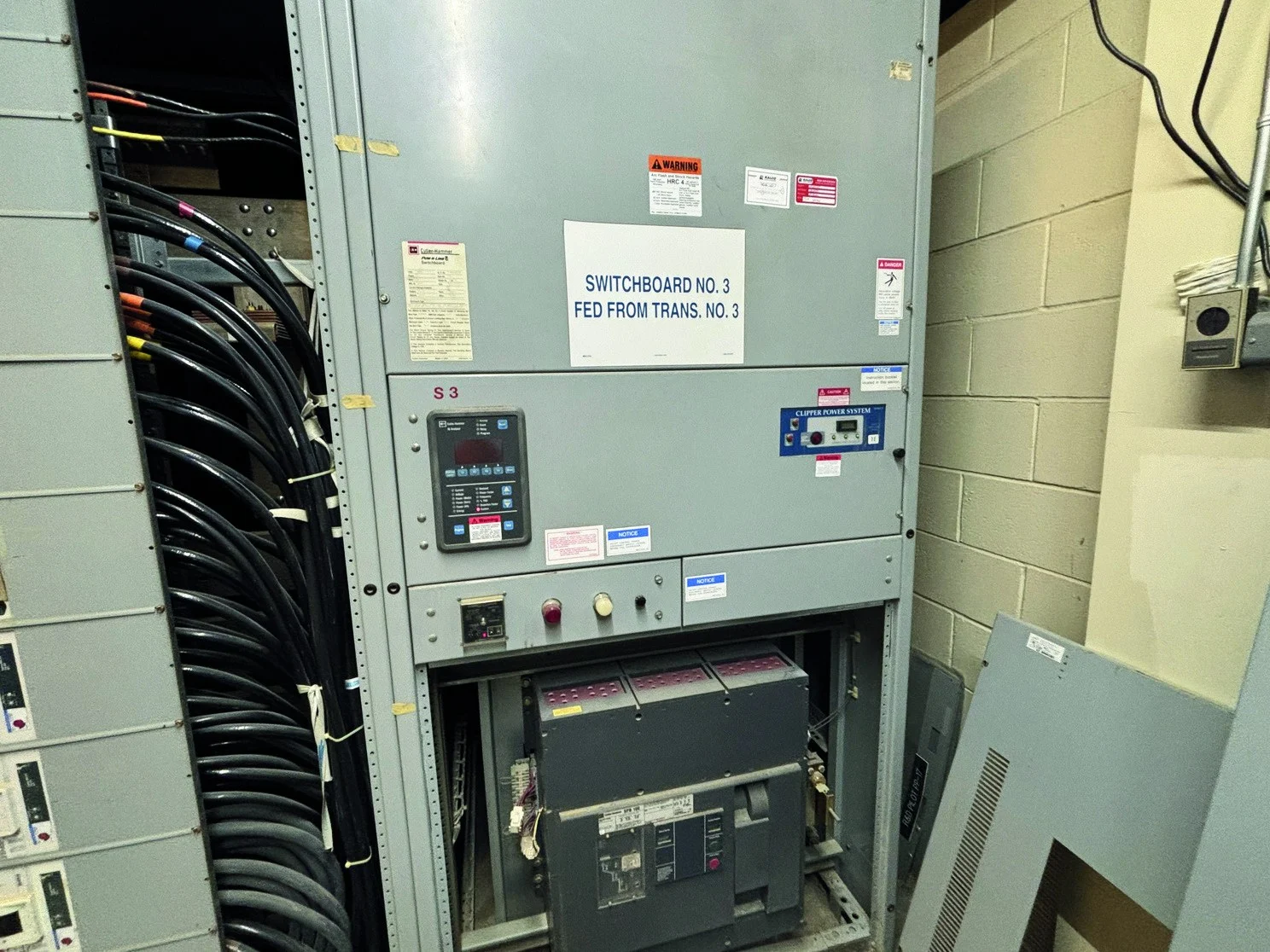

480V distribution switchboard. The failing 5,000A main breaker is located in the bottom compartment, feeding the facility's primary production lines. Its position only inches off the ground added significant complexity to removal and replacement, requiring careful planning to avoid damage to the stationary bus, breaker frame, or replacement unit.
Why This Discovery Was Critical
Had the breaker failed during live operation:
Identifying the issue during a planned outage shifted the situation from a potential emergency to a controlled, strategic response.

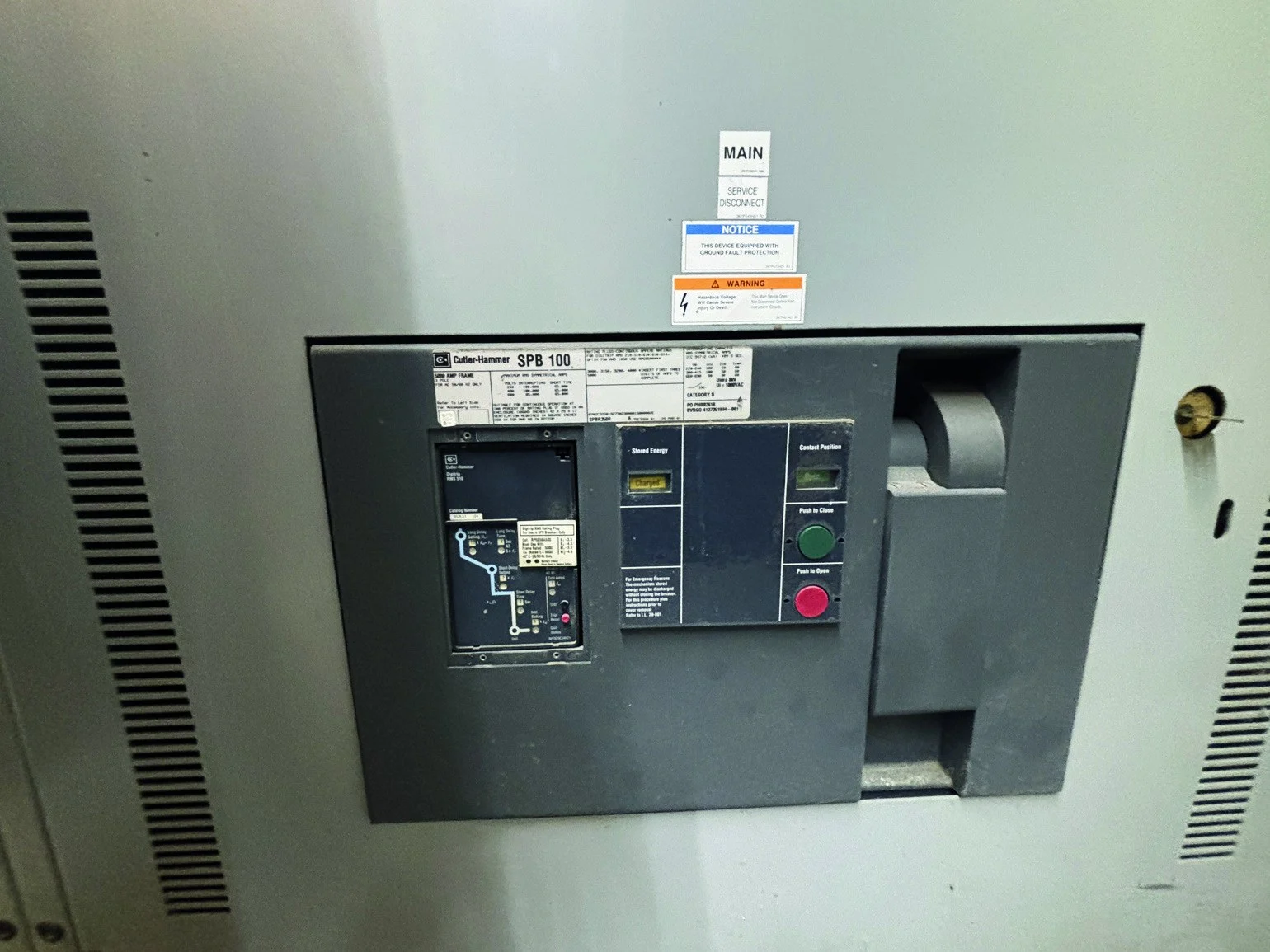

Close-up of the Cutler-Hammer SPB 100 insulated case circuit breaker rated for 5,000 amps. This legacy frame is no longer in standard production, making sourcing a suitable replacement within the available outage window exceptionally difficult.
The Challenge: Find a 5,000A Legacy Breaker, Fast
Discovering the problem was only the first challenge.
The failed unit was a Cutler-Hammer SPB 100 insulated case circuit breaker rated for 5,000 amps. This specific large-frame breaker is no longer in standard production, making immediate replacement availability extremely limited.
Finding and replacing a breaker of this size and type within 48 hours is not a routine procurement task. These breakers are highly specialized, manufacturer-specific, rarely stocked, and logistically complex to transport and install.
The Response: 40 Years of Experience Put To Work
RALCO’s ability to locate, ship, install, and test a replacement breaker within 48 hours was possible because of 40 years of commercial and industrial electrical experience, deep technical knowledge, and trusted supplier relationships built over decades.
Within 48 hours, RALCO:
This level of execution does not happen by accident. It is the result of decades of working in complex, high-stakes industrial electrical environments where safety, precision, and timing matter.

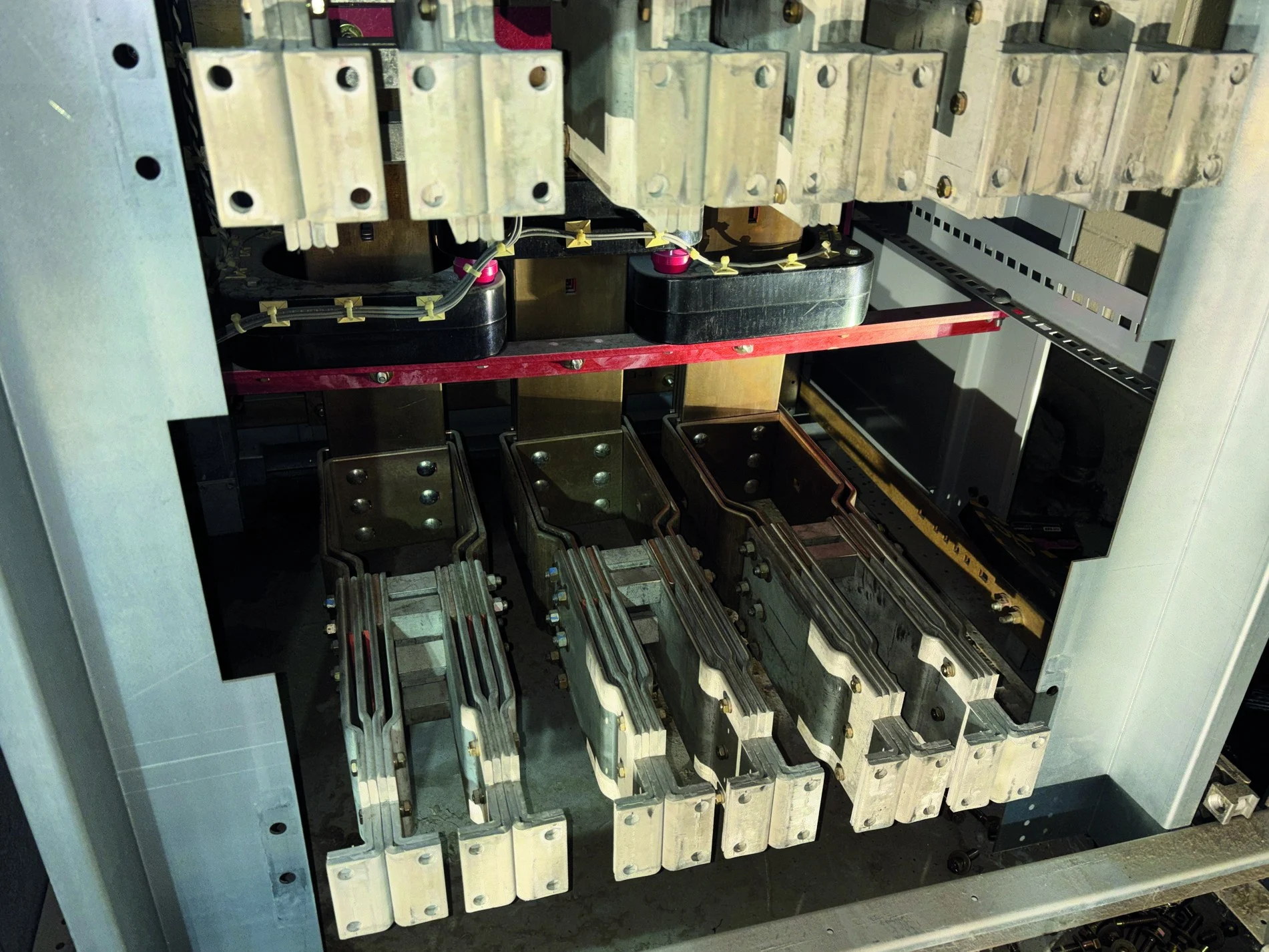

The empty breaker cell showing the copper primary and secondary bus connections. During removal, RALCO inspected the contact surfaces for pitting, arc marks, and heat damage to ensure the replacement breaker would seat correctly and safely carry the full 5,000A load.

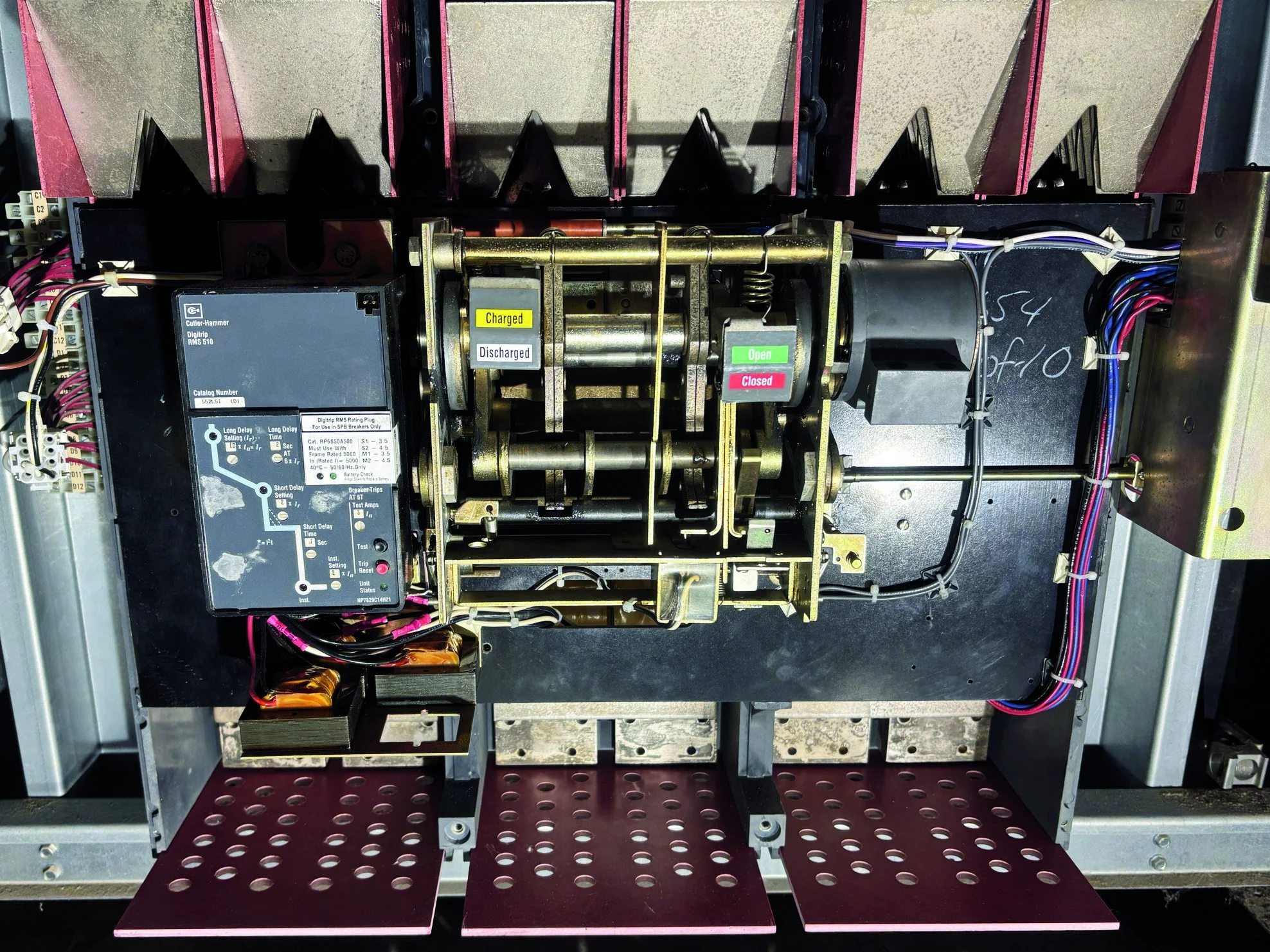

Internal operating mechanism exposed during failure inspection. The charging springs, main contacts, and arc chutes are visible. The failure was traced to mechanical binding in the linkage and degraded lubrication associated with the lack of regular service and exercise.
The Result: A Potential $1M-Per-Day Problem Never Became An Emergency
As a result of proactive testing and decisive action:
The most important outcome: the failure never happened during production.
What Could De-Energized Testing Find At Your Facility?
Critical failures often develop silently in high-amperage electrical equipment. When problems are first discovered during live operation, the cost and risk are highest. Planned outages paired with proper testing allow facilities to identify developing problems and convert emergency failures into controlled corrective work.
An effective industrial electrical maintenance program can help facilities:
Why Experience Matters In Electrical Maintenance
Finding a problem is only the beginning. When testing identifies a critical issue, you need an electrical partner with the technical expertise, supplier relationships, logistics capabilities, and experience to solve it. For more than 40 years, RALCO Electric has supported commercial and industrial facilities throughout New England with electrical testing, maintenance, and corrective services where downtime is not an option.
RALCO’s Electrical Maintenance & Testing services include energized and de-energized testing, breaker and switchgear testing and replacement, infrared thermographic inspections, planned outage support, and risk-based corrective planning for mission-critical electrical systems.
This project is the proof: RALCO did not simply identify a failing breaker. We had the resources and experience to solve the problem before it became the customer’s emergency.
